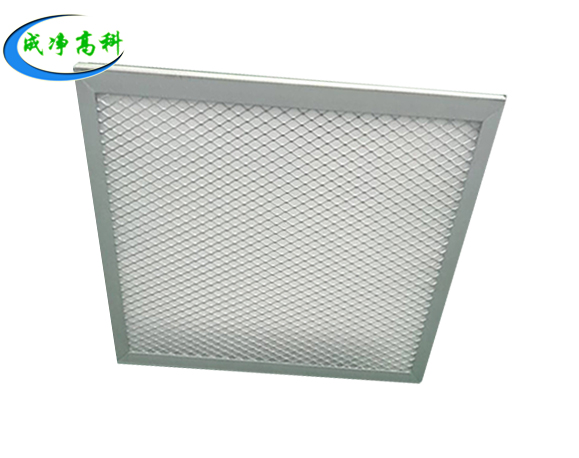

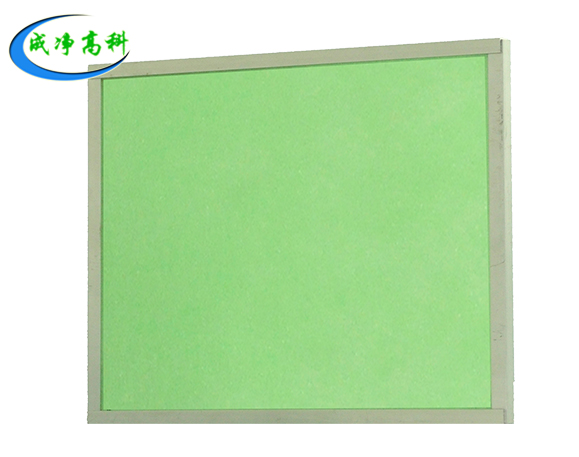

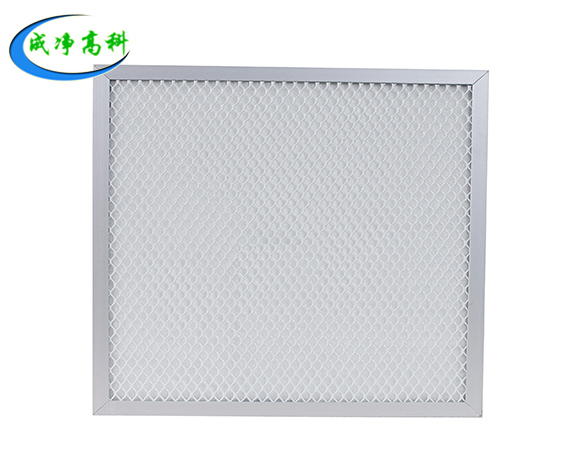

Flat type coarse efficiency of air filters
●價格便宜，厚度薄
●阻力小、風量大
●適用于空調系統的初級過濾
●Price cheap price, adopts thin thickness
●Responding to small resistance, air
●Applicable to air conditioning system adopts the primary filtration
型號尺寸及其他參數
Standard specification
|
型號 model |
外形尺寸 Outside Dimensions |
額定風量 Rated air flow |
初阻力 Initial resistance |
效率（級別） Efficiency(class) |
濾料型號 Model of filter media |
|
|
CJ-S8-1 |
295×295×10/20mm 12″×12″×1/2″/1″ |
800m3/h |
25Pa |
40% (計重法) weight |
G1 G2
|
初效過濾棉 Early effect filter cotton |
|
CJ-S8-2 |
495×295×10/20mm 20″×12″×1/2″/1″ |
1300m3/h |
||||
|
CJ-S8-3 |
495×495×10/20mm 20″×20″×1/2″/1″ |
2200m3/h |
||||
|
CJ-S8-4 |
595×295×10/20mm 24″×12″×1/2″/1″ |
1600m3/h |
||||
|
CJ-S8-5 |
595×495×10/20mm 24″×20″×1/2″/1″ |
2700m3/h |
||||
|
CJ-S8-6 |
595×595×10/20mm 24″×24″×1/2″/1″ |
3200m3/h |
||||
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
